13

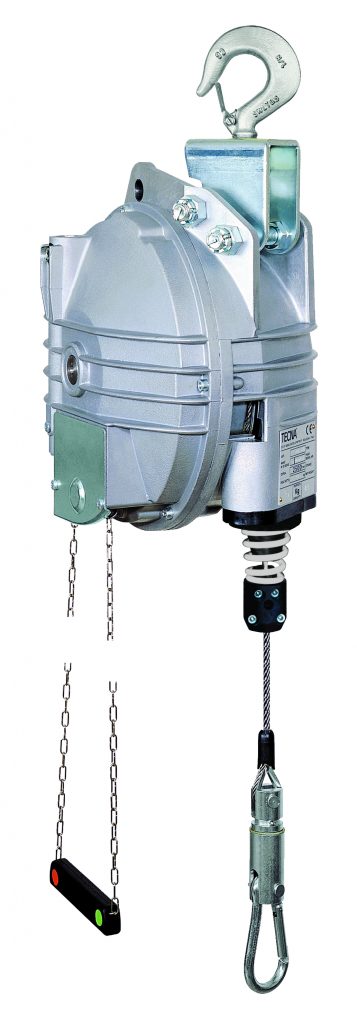

9401 - 9433

  9401 9402 9403 9404 9405 9431 9432 9433
Capacity 15-20 20-30 30-40 40-50 50-60 15-20 20-25 25-35
Weight 19 19.8 20.8 23.9 25.4 19.1 19.9 20.9
Stroke 2500 mm 3000 mm
Cable Inox
Body  Aluminium

Balancer Technical Features

                15 15
  3 4   8 9   12 14 14
  1 2 5 6 7 10 11 13 13 Correcponding number on diagrams
KG 0.2-3 0.4-3 1-8 2-14 2-10 4-25 10-105 15-180 15-180 Capacity - Kilograms conversion to pounds - KG x 2.2 = lbs.
mm 1600 1600 2000 2500 2500 2000 2000 2500 3000 Stroke
  *                 Rugged Construction, Nylon body
    * * * *         Rugged Construction, Cast aluminium body
            * * * * Ribbed and sealed monobloc construction in aluminium alloy
  * *   * *         Polyproplene\Dyneema rope
  * * * * * * * * * Stainless steel rope
  * * * * *         Adjustable capacity
            * * * * Adjustable capacity by means of a worm screw
  * * * * * * * * * Auxilliary safety suspension
      * * * * * * * 3kg)"}">
Safety device against load dropping due to the spring breakage (>3kg)
              * * * Centrifugal safety device
            * * * * Upper rotary suspension with safety hook
            * * * * Locking device to block the load at any height
  * * * * * * * * * Adjustable stroke limiting device
            * * * * Taper drum rotating on ball bearings
  * * * * * * * * * Cable guide in antifriction material
            * * * * Rotary upper hook with ball bearing
                * * Lining up upper hook
                * * Visible cable for inspection
  * * * * * * * * * Inert spring drum assembly
  * * * * * * *     Polyamides thimble
ON REQUEST OPTIONS B-RI-F
              * * * B: Locking-unlocking device with control from the floor
              * * * RI: Rotary and insulating device
            *       F: Brake device

Customized versions can be produced upon request.  TECNA USA is available for support and questions.
TECNA S.p.A reserves the right to change specifications for any product at any time without notice.

Accessories available include:

  • Hoses
  • Custom length stroke cables
  • Locking/unlocking devices with control from the floor
  • Rotary and insulating device
  • Break device
  • Bridge rail systems
